Plot modality-network differences on a single graph

Source: R/plot_modality_difference.R
plot_modality_difference.Rd

Renders the edge-wise differences between two catmodgraph objects (from test_modality_edge_differences) on one shared-layout graph, so the reader can see where in the joint categorical structure two samples disagree, not just that they disagree.

Usage

plot_modality_difference(
  x,
  reference = NULL,
  alpha_fdr = 0.05,
  alpha_floor = 0.15,
  show_nonsig = TRUE,
  group_labels = c("stronger in x", "stronger in y"),
  color_pos = "#1D9E75",
  color_neg = "#D85A30",
  layout_fn = igraph::layout_with_fr,
  vertex_size = 14,
  edge_scale = 8,
  title = NULL,
  ...
)

Arguments

x

A catmodedgetest object, typically from test_modality_edge_differences.

reference

Optional. One of the two source catmodgraph objects, or a list of both. Used only to derive the node set and (by default) the layout. If NULL (default), a graph is built from the union of edges in x$edge_table and laid out directly; node-variable colouring is still recovered from the "Variable=level" naming convention.

alpha_fdr

Numeric in (0, 1]. Adjusted p-value cutoff for "significant" edges. Non-significant edges are drawn with a floor opacity set by alpha_floor. Default 0.05.

alpha_floor

Numeric in [0, 1]. Minimum edge opacity, applied to non-significant edges and as a lower bound on the -log10(p_adjusted) alpha mapping. Default 0.15.

show_nonsig

Logical. If FALSE, edges with p_adjusted >= alpha_fdr are omitted entirely. If TRUE (default), they are drawn at alpha_floor.

group_labels

Character vector of length 2. Legend labels for the two groups; the first is the direction obs_diff > 0 (stronger in x), the second obs_diff < 0 (stronger in y). Default c("stronger in x", "stronger in y").

color_pos, color_neg

Character. Hex colours for the two directions. Defaults are a teal / coral pair chosen to match the signed-residual palette in plot.catmodgraph.

layout_fn

Function. An igraph layout function applied to the reference graph. Default igraph::layout_with_fr.

vertex_size

Numeric. Vertex size. Default 14.

edge_scale

Numeric. Multiplier for edge widths after scaling \(|obs_diff|\) into [0, 1]. Default 8.

title

Character. Plot title. Default NULL (auto).

...

Further arguments passed to plot.igraph.

Value

Invisibly returns the igraph object used for plotting, with edge attributes obs_diff and p_adjusted set.

Details

Edge colour encodes the sign of the difference weight_x - weight_y: edges stronger in x are drawn in one colour, edges stronger in y in another. Edge width scales with \(|weight_x - weight_y|\). Edge opacity scales with -log10(p_adjusted) so that edges with smaller adjusted p-values dominate the visual field; non-significant edges remain visible but faded.

This is a complement to the plot() method for catmodedgetest objects, which renders a bar chart of the top-n edges by adjusted p-value. Use the bar chart for a ranked-list read and this function for a network-structural read.

Interpretation caveats

  • The sign of the difference is group-order-dependent: if x and y are swapped at the testing step, every colour flips. The group_labels argument lets you write the legend in plain language rather than relying on the reader to remember which group was which.

  • Edges absent from both input graphs (weight 0 in each) will have obs_diff == 0 and are omitted by edges = "union" in test_modality_edge_differences. If you called the test with edges = "all", consider pre-filtering the edge table before plotting to avoid a dense low-magnitude background.

  • The -log10(p_adjusted) alpha mapping is clamped at 4 (i.e., p_adjusted <= 1e-4 all plot at full opacity). This prevents a single ultra-significant edge from visually dominating the entire panel.

See also

test_modality_edge_differences, plot.catmodedgetest(), compare_modality_graphs

Examples

# \donttest{
data(survey_health)
df_f <- subset(survey_health, sex == "female")[, -1]
df_m <- subset(survey_health, sex == "male")[, -1]

mg_f <- build_modality_graph(df_f)
mg_m <- build_modality_graph(df_m)

edge_test <- test_modality_edge_differences(
  mg_f, mg_m, n_perm = 200, edges = "union",
  seed = 1, verbose = FALSE
)

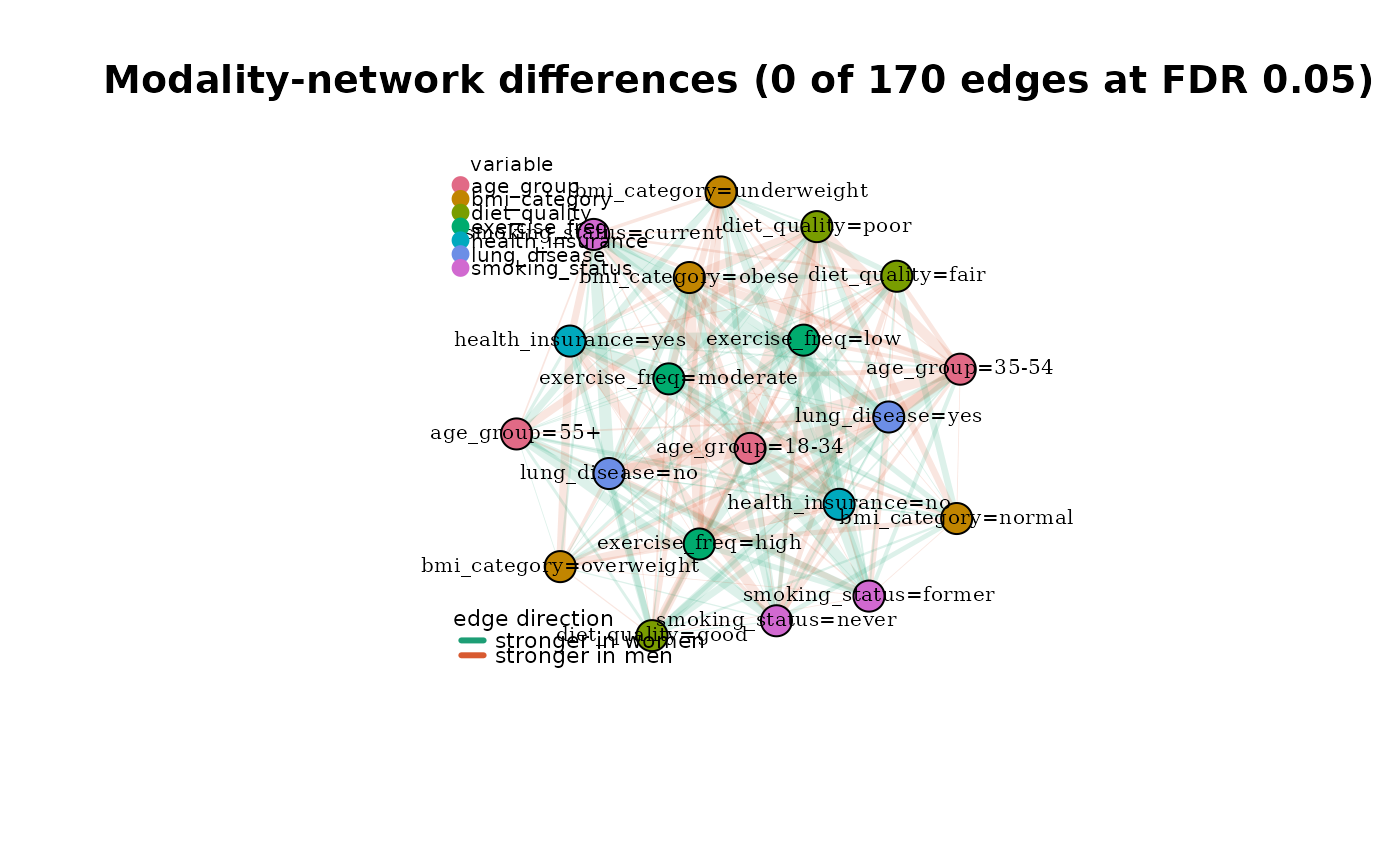

plot_modality_difference(
  edge_test,
  reference    = list(mg_f, mg_m),
  group_labels = c("stronger in women", "stronger in men")
)

# }
