Plot a heatmap of pairwise association weights

Source: R/plot_heatmap.R
plot_heatmap.Rd

Produces a colour-coded heatmap of the dense all-pairs effect-size matrix implied by a catgraph object. Heatmap fill values are computed from the processed data stored in x$data via assoc_similarity, so true zero associations are shown as 0 rather than treated as absent graph edges.

Usage

plot_heatmap(
  x,
  engine = c("ggplot2", "base"),
  show_values = TRUE,
  show_sig = FALSE,
  show_ci = FALSE,
  palette = c("#FFFFFF", "#EEEDFE", "#AFA9EC", "#7F77DD", "#534AB7", "#26215C"),
  digits = 2L,
  title = NULL,
  na_fill = "#D3D1C7",
  reorder = TRUE
)

Arguments

x

A catgraph object.

engine

Character. "ggplot2" (default) or "base". The ggplot2 engine requires ggplot2; the base engine uses only graphics from base R.

show_values

Logical. Whether to print effect-size values inside each cell. Default TRUE.

show_sig

Logical. Whether to overlay significance stars (*** p < 0.001, ** p < 0.01, * p < 0.05, . p < 0.1) below each value. Default FALSE.

show_ci

Logical. Whether to show bootstrapped confidence intervals as [lo, hi] text beneath each value. Requires that catgraph_ci has been called on x. Default FALSE.

palette

Character vector of colours defining the gradient from low (weak association) to high (strong association). Default is a perceptually uniform purple ramp derived from the package colour system. Pass any vector of hex colours to override.

digits

Integer. Number of decimal places for cell labels. Default 2L.

title

Character. Plot title. Default NULL.

na_fill

Character. Fill colour for cells that could not be computed (e.g. degenerate pairs). Default "#D3D1C7" (gray-100).

reorder

Logical. Whether to reorder variables by hierarchical clustering of the effect-size matrix so that similar variables are adjacent. Default TRUE.

Value

For engine = "ggplot2": a ggplot object (can be further customised with ggplot2 layers). For engine = "base": NULL, invisibly, called for its side effect.

Details

Colour palette: the default palette is a five-stop sequence from white (V = 0) through lilac to deep purple (V = 1), matching the purple ramp used throughout the package. This choice avoids the red/green palette that is problematic for colour-blind readers. Pass palette = c("#FFFFFF", "#5DCAA5", "#0F6E56") for a teal ramp, for example.

Reordering: when reorder = TRUE, the variables are permuted by the first two components of an angular-order seriation of the correlation matrix, following the corrplot convention (Wei & Simko, 2021). Because effect sizes are always non-negative, the clustering uses \(1 - V\) as a dissimilarity measure, which groups strongly associated variables together.

References

Wei, T., & Simko, V. (2021). R package corrplot: Visualization of a Correlation Matrix. Version 0.92. https://github.com/taiyun/corrplot

See also

assoc_matrix, catgraph_ci, plot.catgraph

Examples

df <- as.data.frame(Titanic)
df_exp <- df[rep(seq_len(nrow(df)), df$Freq), -5]
cg <- catgraph(df_exp)
plot_heatmap(cg)

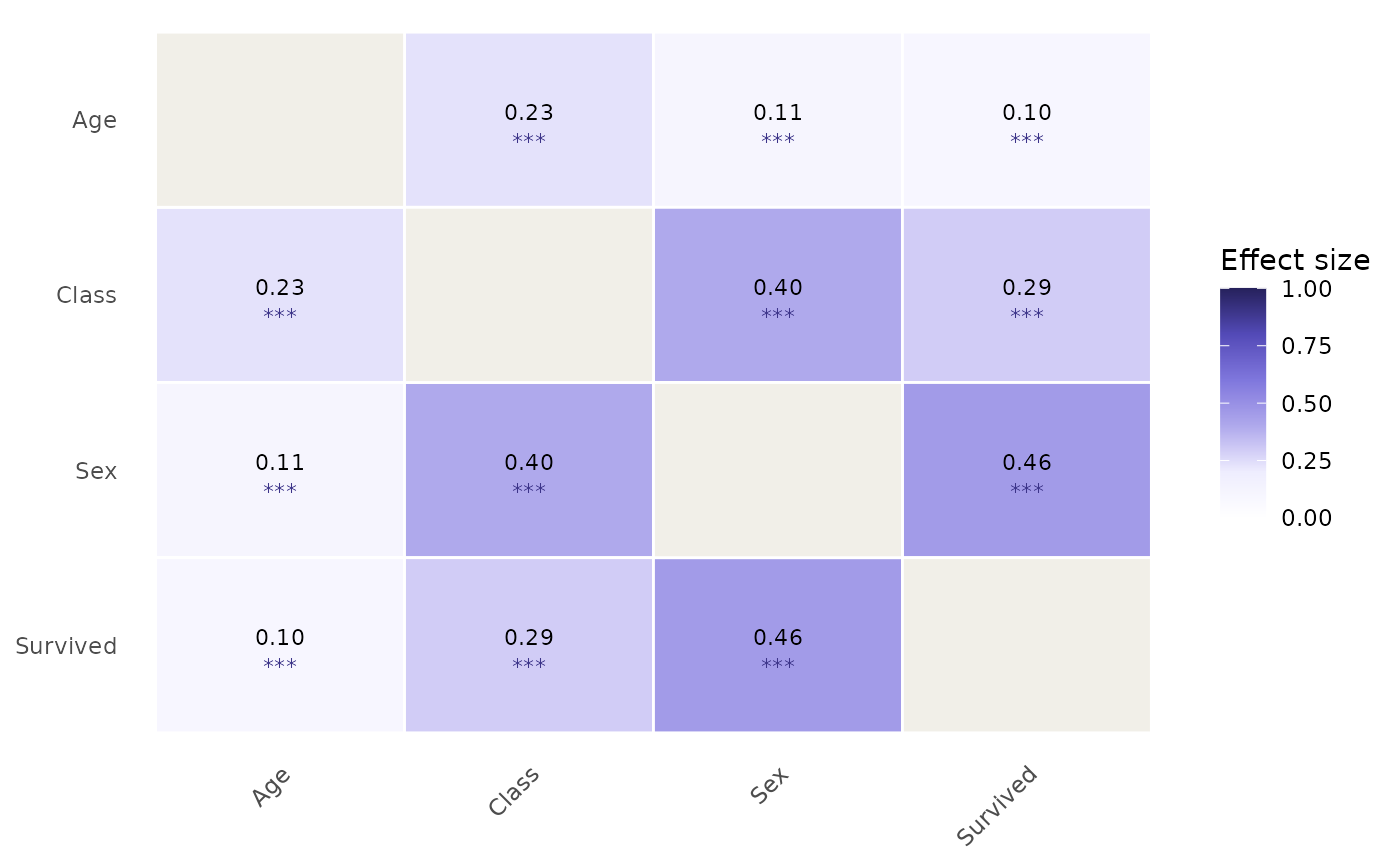

plot_heatmap(cg, show_sig = TRUE)

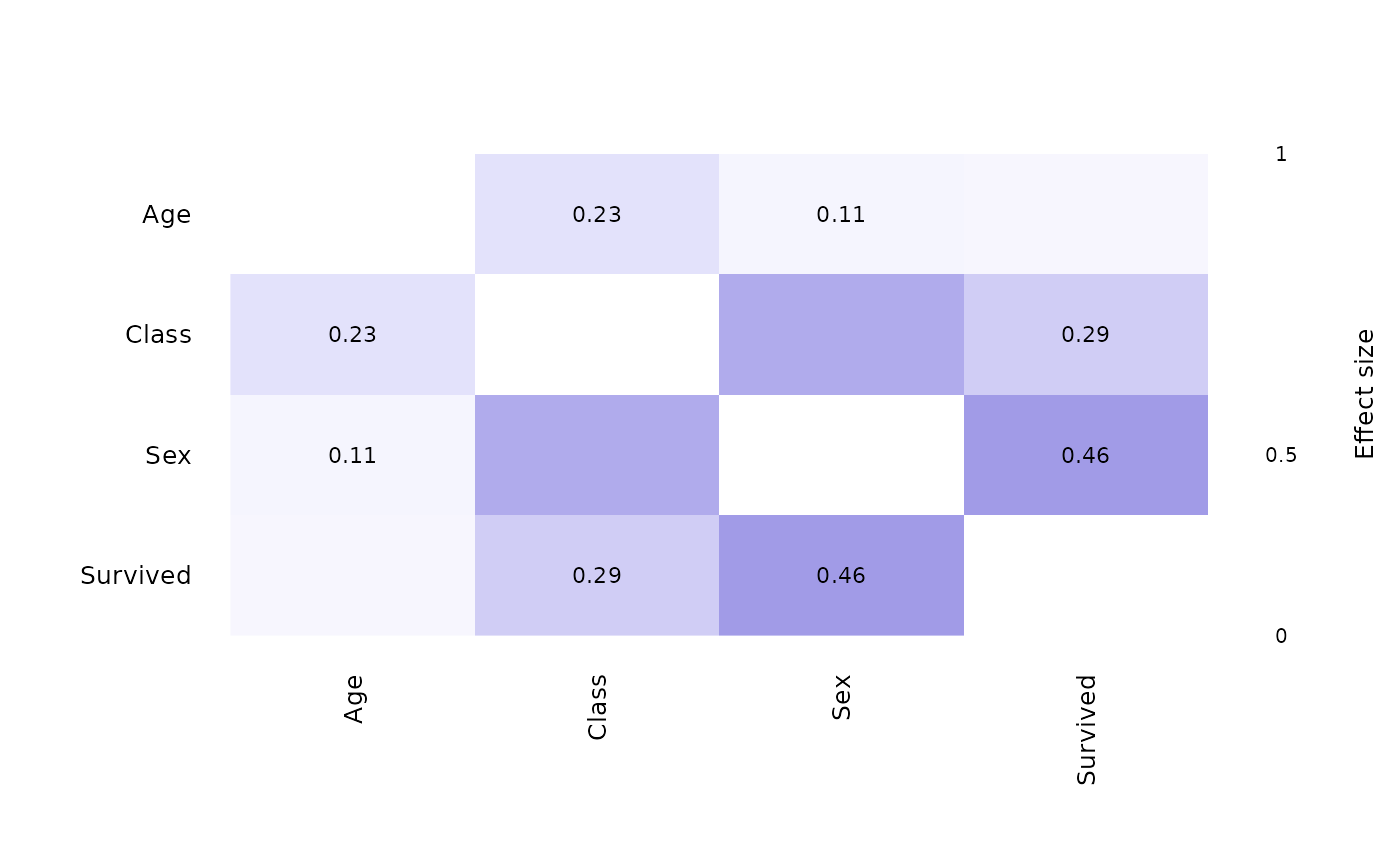

plot_heatmap(cg, engine = "base")
