Plot a catgraph object — plot.catgraph • catgraph

Visualises the undirected weighted association network. The default renderer uses igraph's base-graphics plot. If engine = "ggraph" is requested and ggraph is installed, a ggplot2-based plot is returned as a ggplot object.

Usage

# S3 method for class 'catgraph'
plot(
  x,
  engine = c("igraph", "ggraph"),
  layout = "fr",
  edge_width_range = c(0.5, 4),
  vertex_size = 30,
  vertex_color = "#AFA9EC",
  edge_color = "#888780",
  label_size = 0.8,
  title = NULL,
  ...
)

Arguments

x: A catgraph object.
engine: Character. Either "igraph" (default) or "ggraph".
layout: Character. Layout algorithm. For engine = "igraph", one of "fr" (Fruchterman-Reingold, default), "kk" (Kamada-Kawai), "circle", "grid", "graphopt", "nicely", or "random". For engine = "ggraph", any layout string accepted by ggraph::ggraph.
edge_width_range: Numeric vector of length 2. Minimum and maximum line widths mapped to edge weights. Default c(0.5, 4).
vertex_size: Numeric. Vertex size for engine = "igraph". Default 30.
vertex_color: Character. Vertex fill colour.
edge_color: Character. Edge colour.
label_size: Numeric. Label character expansion. Default 0.8.
title: Character. Plot title. Default NULL.
...: Additional arguments passed to the underlying renderer.

Value

For engine = "igraph": invisibly returns x (called for its side effect). For engine = "ggraph": a ggplot object.

Details

In v0.3.0 and earlier, the layout argument was silently ignored by the igraph branch (Fruchterman-Reingold was always used). From 0.4.0 onwards, layout is respected for both engines.

Examples

df <- expand_table(Titanic)
cg <- catgraph(df)

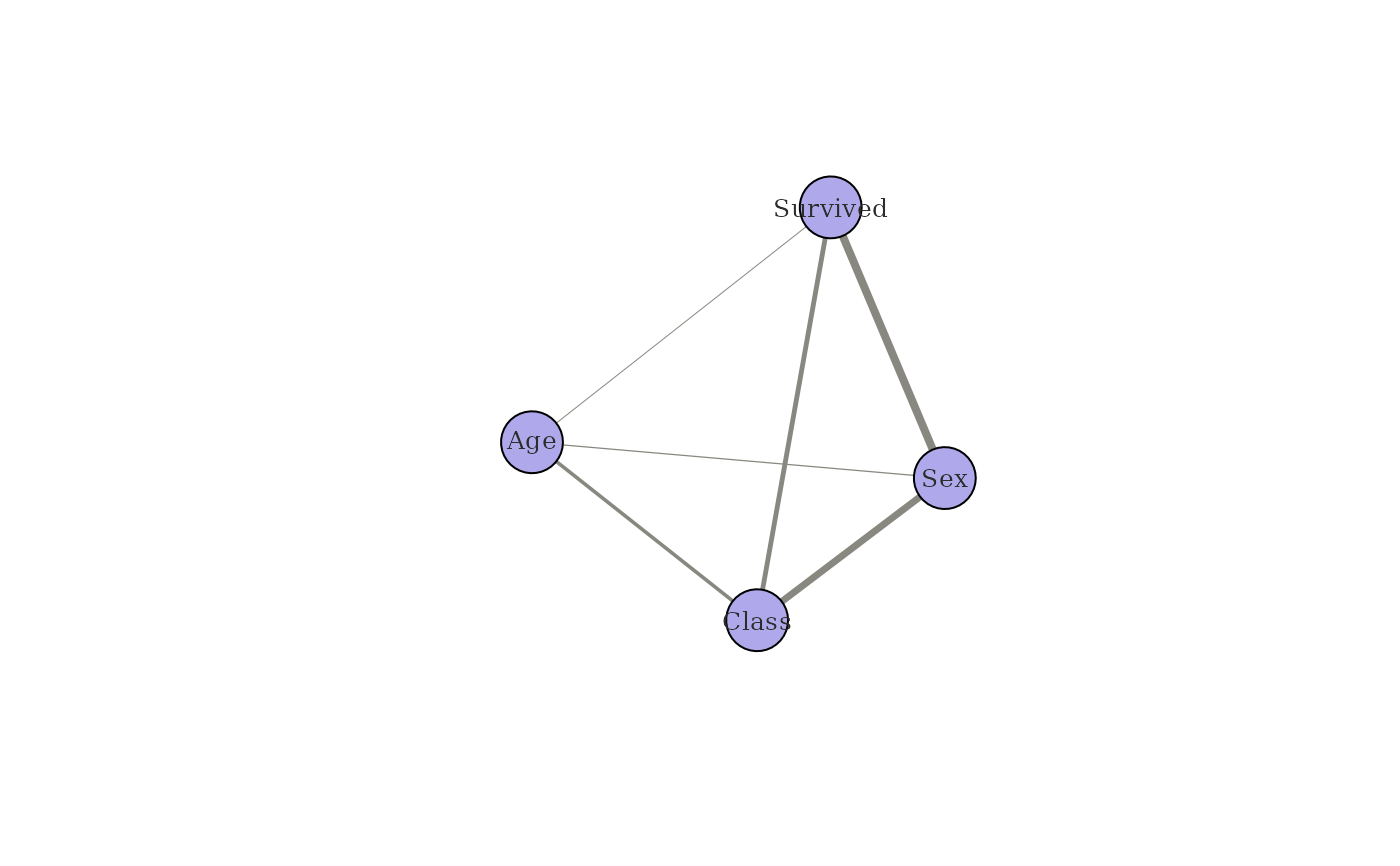

plot(cg)

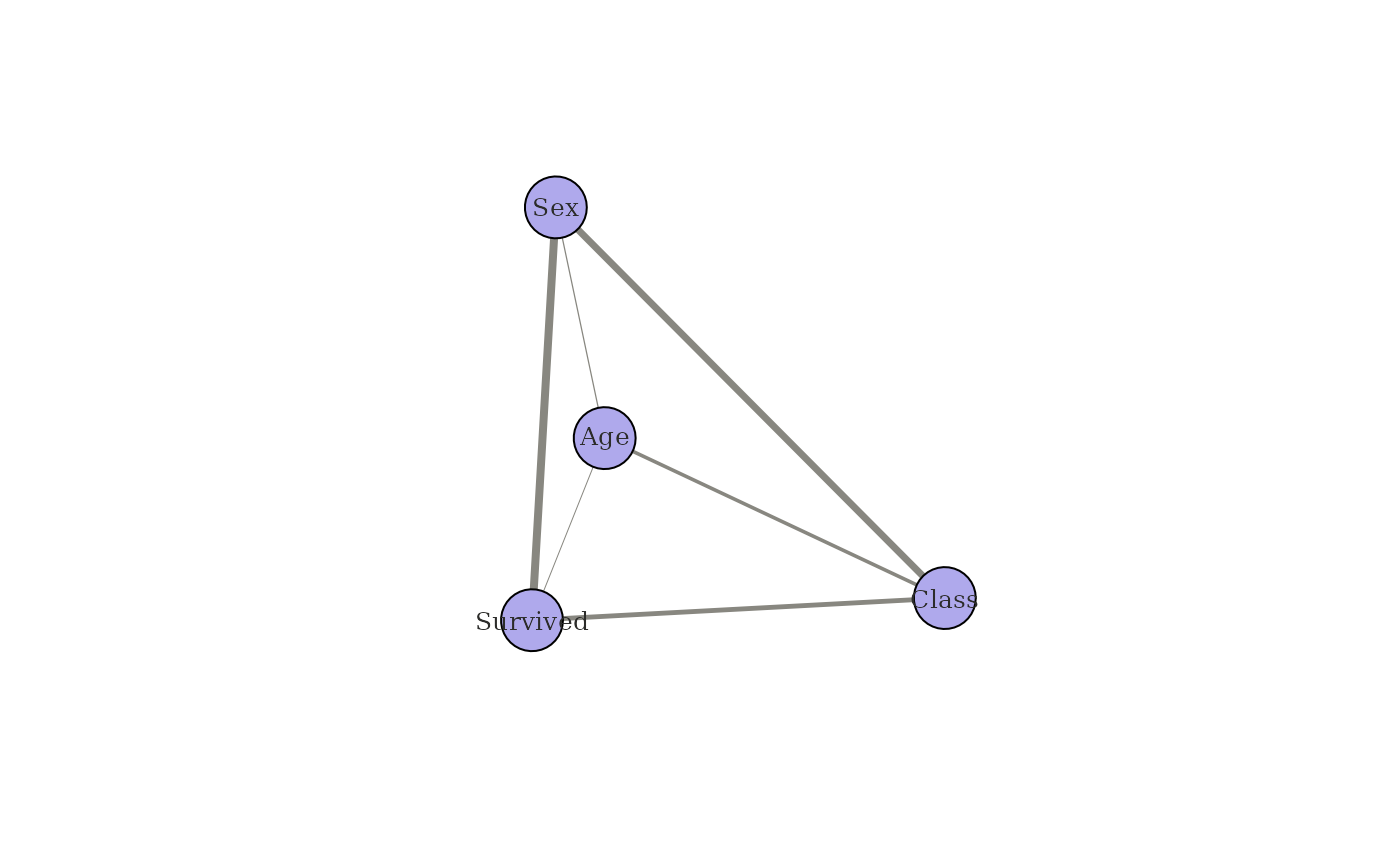

plot(cg, layout = "kk")

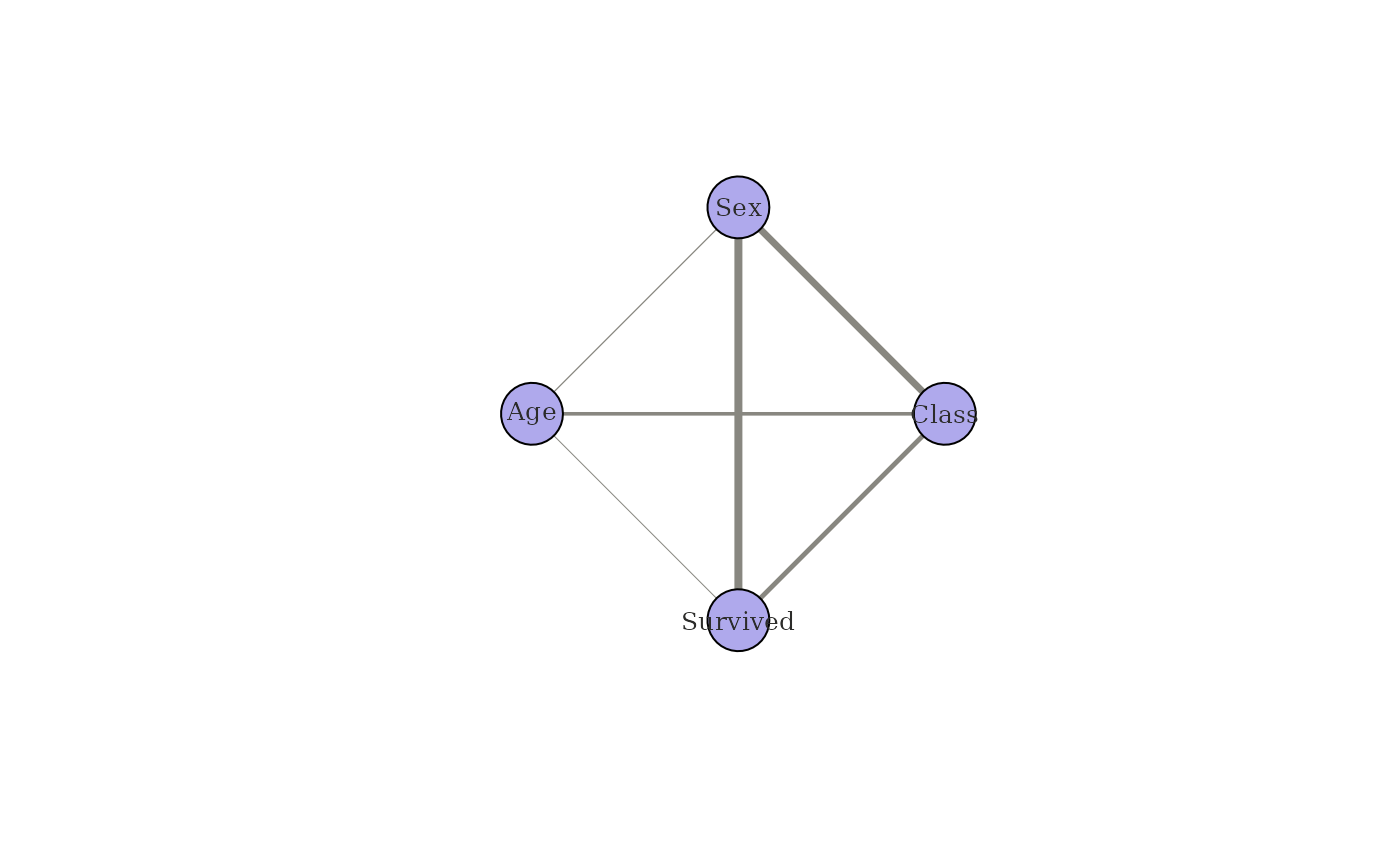

plot(cg, layout = "circle")
