Plot gravity indices alongside traditional centrality for a catmodgraph

Source: R/gravity_plots.R
plot_gravity.Rd

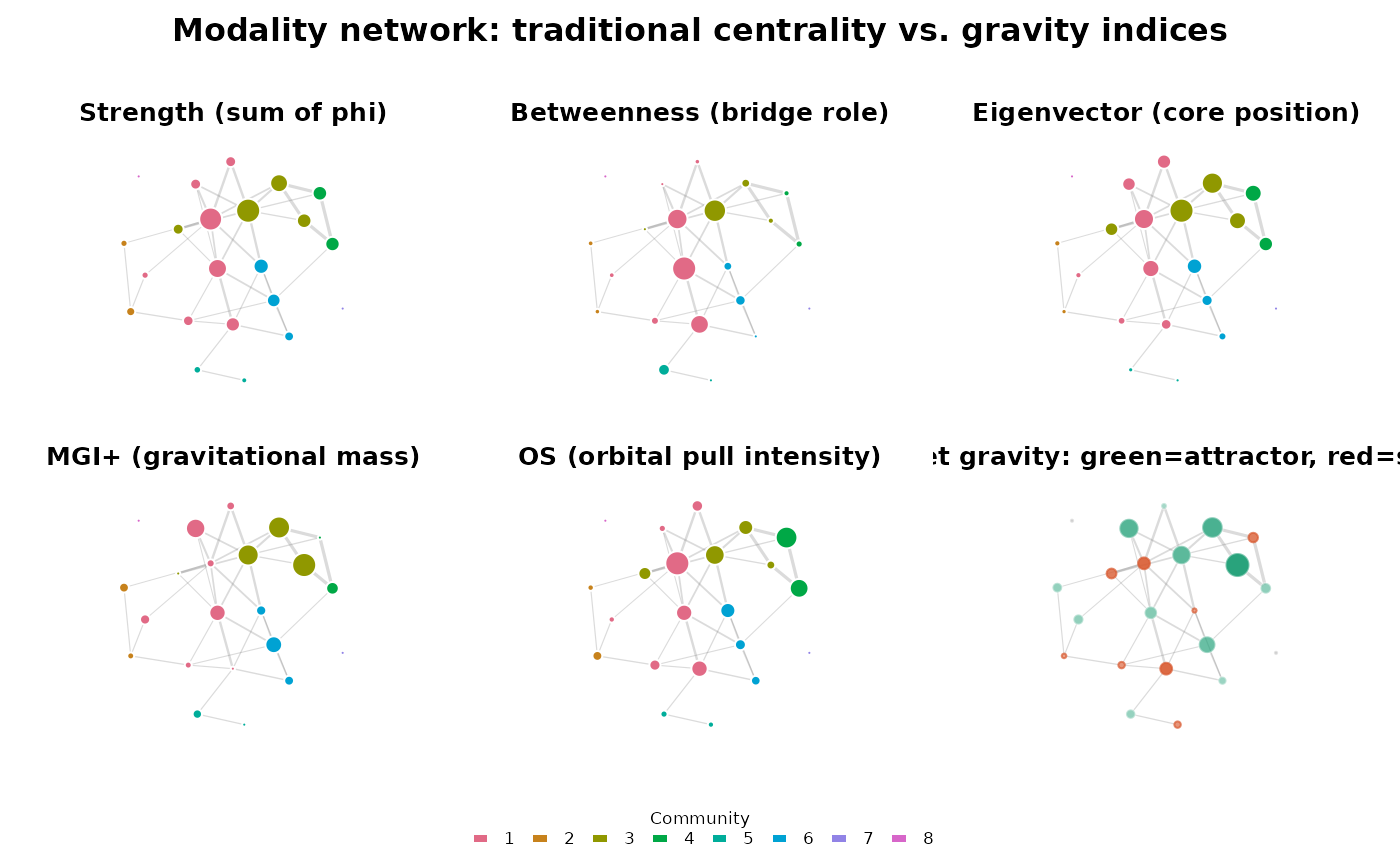

Produces a 2 x 3 panel figure showing six structural measures for the same modality network on a shared layout: strength, betweenness, and eigenvector centrality (top row) alongside MGI+, OS, and dMGI (bottom row). Node size encodes the magnitude of each measure; colour encodes community membership (top row) or attractor/satellite role (dMGI panel).

Usage

plot_gravity(
  x,
  gravity = NULL,
  layout_fn = igraph::layout_with_fr,
  community_attr = "cluster",
  palette = NULL,
  seed = 1L,
  title = "Modality network: traditional centrality vs. gravity indices",
  node_size_range = c(4, 22),
  show_labels = FALSE,
  bars = FALSE,
  bars_n = 12L,
  attractor_col = "#1D9E75",
  satellite_col = "#D85A30",
  ...
)

Arguments

x

A catmodgraph object.

gravity

A data frame returned by modality_gravity. If NULL (default), modality_gravity(x) is called internally.

layout_fn

An igraph layout function. Defaults to igraph::layout_with_fr.

community_attr

Character. Vertex attribute name for community membership (set by cluster_modalities). Defaults to "cluster".

palette

Character vector of colours for communities. If NULL, grDevices::hcl.colors with palette "Dark 3" is used.

seed

Integer. Random seed for reproducible layouts. Default 1L.

title

Character. Overall figure title. Default "Modality network: traditional centrality vs. gravity indices".

node_size_range

Numeric vector of length 2. Minimum and maximum node sizes. Default c(4, 22).

show_labels

Logical. Whether to draw node labels. Default FALSE.

bars

Logical. If TRUE, a second figure is produced showing a 2 x 3 bar chart panel with the top bars_n modalities per measure, coloured by community. Default FALSE.

bars_n

Integer. Number of top modalities to show per bar chart panel when bars = TRUE. Default 12L.

attractor_col

Colour for attractor nodes in the dMGI panel. Default "#1D9E75".

satellite_col

Colour for satellite nodes in the dMGI panel. Default "#D85A30".

...

Additional arguments passed to modality_gravity when gravity = NULL.

Value

Invisibly returns the gravity data frame used for plotting. The primary effect is the figure drawn on the current graphics device.

See also

modality_gravity, compare_gravity

Examples

data(survey_health)
mg  <- build_modality_graph(survey_health)
mg  <- prune_modality_edges(mg, min_weight = 0.10, max_p = 0.05)
mg  <- cluster_modalities(mg, method = "louvain")
plot_gravity(mg)
